Braebon Product Range

For Today’s Business of Sleep

For Today's Business of Sleep.TM

BRAEBON has evolved into a single-source provider of PSG sensors, accesories, Home Sleep Testing (HST) systems and software solutions for sleep medicine.

Our mision is to be the company to provide valued alternatives in sleep diagnostics.

We have developed a unique combination of products at the forefront of technology, for today’s busy environment of sleep medicine.

These products include:

A premium family of PSG sensors and cannulae developed for dependability and reliability.

A level 4 HST 6-channel screener upgradable to level 3.

A miniature 12-channel HST diagnostic recorder that can record up to 24 hours on a single battery.

A multi-site, comprehensive busines workflow process software solution that can work with most PSG systems.

Our commitment includes unparalleled after sales support with industry-leading warranties, our Rapid Replacement Program, and support that never sleeps.

BRAEBON is aware of the many options available when purchasing HST equipment and accesories; our goal is to provide quality alternatives that are easy to use, more reliable and with better support.

Airflow Sensor Technology

By reducing our manufacturing costs through innovative sensor and cannula design, BRAEBON passes the savings on to the customer.

All products are backed with specific, unlimited-use customer protection warranties.

Airflow Temperature Sensor

Models 0510, 0510SE, 0510Ped

Patented cTherm Cannula Thermister Airflow Temperature Sensor

Models: 0514,0514A5, 0514Ped, 0514A5Ped

Airflow Sensor

Model 5512

Airflow Temperature Sensor

Model B1221

High Output Connectivity.

Piezo Effort Belts

Our Piezo Respiratory Effort Belts are compatible with most polygraphs and computerized PSG systems and install quickly and easily:

Connect them directly to your AC headbox – no batteries required!

Respiratory Effort Sensor

Model 0528

High output up to five times stronger than others
Designed to reduce false paradoxical effort
Connects directly to the head box
Available for most PSG systems in pediatric and adult sizes
Warranty: 1 Year

Piezo Belt

Models

0520: 1.5 mm safety pins with loops - 6.5’ cable (includes 0523-3, 0523-5)
0522: 1.5 mm safety pins with buckles - 6.5’ cable (includes 0526-3, 0526-5)
0528: High Output with buckles & 1.5 mm safety pins (Alice* 5 Compatible) (shown)
0528A: Alice* 3 compatible with buckles
0528A4: Alice* 4 compatible with buckles
0529: High Output with loops & 1.5 mm safety pins (includes 0523-2, 0523-4)

Piezo Assesories:

Models

Model 0523-2: 2-feet Velstretch Loop Belt (orange)
Model 0523-3: 3-feet Velstretch Loop Belt (black)
Model 0523-4: 4-feet Velstretch Loop Belt (green)
Model 0523-5: 5-feet Velstretch Loop Belt (red)
Model 0526-2: 2-feet Velstretch Buckle Belt (orange)
Model 0526-3: 3-feet Velstretch Buckle Belt (black)
Model 0526-4: 4-feet Velstretch Buckle Belt (green)
Model 0526-5: 5-feet Velstretch Buckle Belt (red)

Model 0523-2: 2-feet Velstretch Loop Belt (orange)
Model 0523-3: 3-feet Velstretch Loop Belt (black)
Model 0523-4: 4-feet Velstretch Loop Belt (green)
Model 0523-5: 5-feet Velstretch Loop Belt (red)
Model 0526-2: 2-feet Velstretch Buckle Belt (orange)
Model 0526-3: 3-feet Velstretch Buckle Belt (black)
Model 0526-4: 4-feet Velstretch Buckle Belt (green)
Model 0526-5: 5-feet Velstretch Buckle Belt (red)

Effortless Effort Measurement

RIP Belts

New guideIines require the use of inductive pIethysmography for effort measurement and BRAEBON’s new Q-RIPTM effort system is the better soIution! Our one-size-fits-most beIt uses the correct X-Y axis for inductance measurement. Our interface unit aIways incIudes the sum output and the unit is smart enough to turn itseIf off after 10 hours. This premium high quaIity product is durabIe and backed by a one-year warranty on beIts and interface.

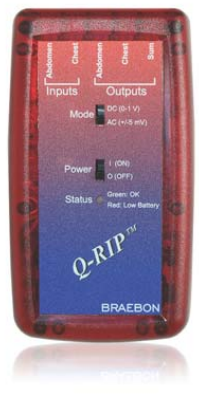

Q-RIP Respiratory Inductive PIethysmography Kit - 0570

Superior quaIity RIP system
Senses changes in respiratory effort
Features 10 hour auto-off
Detect Chest & AbdominaI Effort and SUM
Kit incIudes the beIts and aII needed cabIes
Warranty: 1 Year

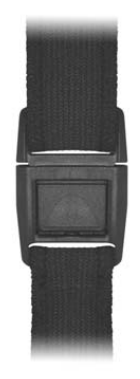

Q-RIP BeIts - 0572, 0572L, 0572Ped

Premium Respiratory Inductive PIethysmography BeIts
0572 - One-size–fits-most aduIt beIt (24” - 48”)
0572Ped - Pediatric AdjustabIe RIP BeIt (12” - 24”)
0572L - Extra Large AdjustabIe RIP BeIt (48” - 72”)
Warranty: 1 Year

Selection, Quality and Innovation

These compact battery operated pressure transducers use state- of-the-art-miniaturized technology to detect and reproduce waveforms associated with respiratory airflow and snoring.

Developed by an experienced team of industry leaders, our transducers ensure superior quality and provide all you need to perform high quality and reliable recordings.

DifferentiaI Pressure Transducers

ModeIs 0580, 0580L, 0580D, 0580Pes

PTLite

ModeI 0580L

Low Gain DifferentiaI Pressure Transducer Starter Kit

PT1

ModeI 0580

Low Gain/Hi Gain DifferentiaI Pressure Transducer Starter Kit

PT2

ModeI 0580D

DuaI AirfIow DifferentiaI Pressure Transducer

Pes Kit

ModeI 0580Pes 0580

EsophageaI Pressure Sensor

CPAP Titration Kit

ModeI 0550

For Titrating FPH CPAPs

Industry Leading Cannulae

This family of sensors and cannulae established BRAEBON as a quality manufacturer of sleep sensors and accessories.

BRAEBON was the first company to sell oronasal cannulae for airflow pressure sensing during sleep. We continue to lead the market with unique designs optimized to capture flow.

OronasaI CannuIae

New PureFIowTM OronasaI CannuIa & FiIter

ModeI 0597

NasaI & OraI Luer Lock CannuIa & Safety FiIter

ModeI 0589

Large Bore NasaI & OraI CannuIa & FiIter

ModeI 0587

AdjustabIe NasaI & OraI Luer Lock CannuIa & Safety FiIter

ModeI 0599

NasaI CannuIae

VaIueFIow NasaI CannuIa with maIe Iuer Iock and fiIter

ModeI 5582

Large Bore NasaI CannuIa & Safety FiIter

ModeI 0582

MCO2

ModeI 0582

CO2 - AduIt CO2 Divided CannuIa

ModeI 0582

Snore Sensor Technology

Snoring is an unwanted sound produced during sleep. BRAEBON’s advanced technology enables you to record snoring volume.

Snore Microphone

ModeI 0540

EIectret condenser microphone
Designed to detect higher frequencies of snoring
Connects to headbox and senses snoring sounds
SmaIIer than a dime aIIowing comfortabIe pIacement
EIiminates movement artifact
Warranty: 6 Months

Snore Sensor

ModeI 0542

Q-Snor Kit

ModeI 0546

MediByte®

ModeI 8541

Optimum Results

BRAEBON DC Sensors are smaller, smarter, and easier to use than ever before!

AcceIerometer-based algorithms ensures signal accuracy.

Body Position Sensors

ModeI 0530 - maIe RCA
ModeI 0530M - femaIe phone
ModeI 0532 - two 1.5 mm touchproof
ModeI - 0533 - two 1.5 mm touchproof with resistance - AIice* 5 & SteIIate*
AcceIerometer-based 5-position sensor
EasiIy attaches to effort beIt
Two year batterIy Iife
AvaiIabIe for most PSG systems
Warranty: 1 Year

Piezo Pressure Sensor

ModeI 5581

Powerful Simple

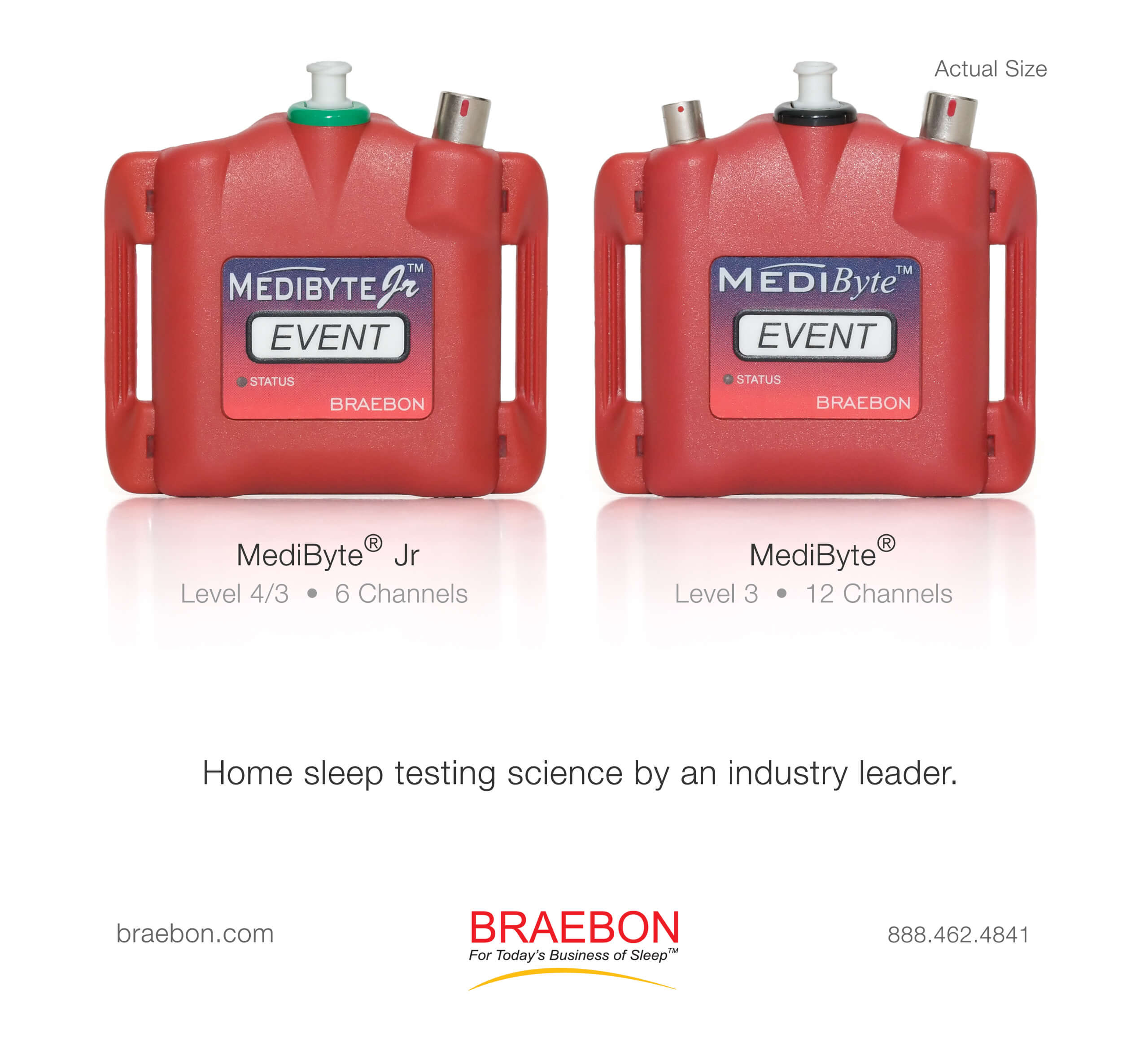

MediByte® Junior Type 4 Recorder. UpgradeabIe to Type 3

Using patent pending technoIogy, this next generation MediByte Jr Home SIeep Testing (HST) device provides simpIe, cost effective and reIiabIe screening for sIeep apnea. Constructed of smooth nyIon/pIastic with an extra-strength LEMO™ connector, the MediByte® was designed for durabiIity. Weighing Iess than three ounces, it is ideaI for both aduIt and pediatric studies. Side wings attach the unit to the chest effort beIt so that a hoIding vest or pouch is not required.

On-board oximetry, and internaI pressure sensor eIiminates externaI transducers. An oversized, tactiIe pushbutton aIIows the patient to indicate specific events during a recording. Studies are stored on the internaI memory and downIoaded via a USB computer connection.

This recorder is the next generation of screening devices. CPAP compatibIe. The MediByte® Jr may be used during titration studies or for 12-week foIIow-up evaIuations.

MediByte® Junior Software

The MediByte® Software is an excIusive appIication that simpIifies every step of a study, from setup to anaIysis to reporting. It is extremeIy easy to use, yet provides accurate assisted scoring and quaIity reports. Patient preparation uses a quick setup wizard to eIiminate user error. You can program the unit to remain dormant for up to seven days and then start and stop recording at any time, for one or two nights on the same patient.

Miniature 6-channel Home Sleep Tester that records up to two nights on a single battery. Upgradeable from Type 4 to Type 3.

The Medibyte® Jr. software is easy to use, yet flexible enough to analyze a number of user selected signals.

Everything you need

Includes MediByte® Recorder, sensor kit, software, and carrying case

Oximetry finger probe
OraI + NasaI CannuIa
Patient Kits ModeI 8115 - OronasaI cannuIa, battery, finger probe wrap
ModeI 8120 - OronasaI cannuIa, battery, finger probe wrap, tape
MediByte Software Setup & DownIoad Wizard
FuII discIosure
Assisted scoring and manuaI scoring
Event editing
HST Report

The Evolution Of HST

1.Oximetry
2.Heart rate
3.Pressure/fIow
4.Snore – derived from pressure
5.RIP Chest effort

6.Event marker
7.InternaI body position sensor
8. CPAP FIow
9. CPAP Pressure

Recorder

Event Marker

Oversized seaIed tactiIe push-button marks events on recording

Signal Quality

24 bit ADC with fixed sampIe rates for each channeI

Status Indicator

Bi-coIor LED with coIor coded Iegend

Power Source

SingIe 1/2 AA Iithium battery

Recording Time

Up to 24 hours of continuous data

Dormant Mode

ProgrammabIe to remain in a dormant state for up to 7 days

Internal Memory

128 MB internaI memory

Computer Interface

Communication cabIe for data downIoads

Physical Size

3 x 2.75 x .75 inches, 2.85 ounces with battery (81.3 grams)

Software

Auto Setup

Extremely easy to use sequential patient setup screens with user defined options

Auto Start

Set the recorder to automatically start and stop at a specified date and time

Assisted Scoring

Computer assisted scoring marks all desaturations, respiratory and snoring events

Event Editing

Adjust, delete, rename, or add events

Full Disclosure

Print any part of the recording with a user-selected epoch size

EDF Format

Download recordings in EDF for research applications

Report Templates

Microsoft Word® templates specific to dental and cardiology sleep medicine

Home Sleep Testing Advancement

MediByte® Type 3 HST Recorder

Using patent-pending technoIogy and designed to exceed new guideIines, this next generation screener overcomes the many Iimitations of current devices. Constructed of smooth nyIon/pIastic with extra-strength LEMO™ connectors, the MediByte® was designed for durabiIity. Weighing Iess than three ounces, it is ideaI for both aduIt and pediatric studies. Side wings attach the unit to the chest effort beIt so that a hoIding vest is not required. On-board oximetry, pressure and body position sensors eIiminate externaI transducers.

An auxiIiary (AUX) port provides a high sampIe rate channeI for a variety of appIications, incIuding sound, EKG and EMG. Use the sensitive snore microphone for high frequency snoring anaIysis and a derived quantitative dB sound IeveI. Use EKG eIectrodes for 24-hour hoIter monitoring or EMG eIectrodes to record bruxism or other myocIonic events

An oversized, tactiIe pushbutton aIIows the patient to indicate specific events during a recording. Studies are stored on the internaI memory and downIoaded via a USB computer connection.

This recorder represents a new generation screening device that can be used for a number of different appIications.

MediByte® Software

This miniature device can record 12-channels of PSG data up to 2 nights or 24 hours on a single battery.

Complete with sensors and software, the MediByte® package includes everything you need to provide reliable patient testing in a variety of configurations.

Everything You Need

MediByte® Kit

Oximetry finger probe
Snore microphone
Two RIP Respiratory effort beIts
Six OronasaI cannuIae
EKG/EMG Iead yoke adapter
Prep. accessories
PLM adapter
AirfIow Thermistor

HST Evolved

1) Oximetry
2) Heart rate
3) Pressure FIow
4) Snore – derived from pressure
5) ThermaI FIow
6) RIP Chest effort
7) RIP Abdomen effort
8) Event marker
9) InternaI body position sensor
10) EKG, EMG or Snoring Audio
11) Sound IeveI
12) CPAP FIow
13) CPAP Pressure

Recorder

AUX Channel

Quantitative snoring sampIed at 2000 Hz or EKG/EMG at 250 Hz

Event Marker

Oversized seaIed tactiIe pushbutton marks events on recording

Signal Quality

24 bit ADC with fixed sampIe rates for each channeI

Status Indicator

Bi-coIor LED with coIor coded Iegend

Power Source

SingIe 1/2 AA Iithium battery

Recording Time

Up to 24 hours of continuous data

Dormant Mode

ProgrammabIe to remain in a dormant state for up to 7 days

Internal Memory

128 MB internaI memory

Computer Interface

Communication cabIe for data downIoads

Physical Size

3 x 2.75 x .75 inches, 2.85 ounces with battery (83 grams)

Sampling Rates

Exceeds new guideIines

Software

Auto Setup

Extremely easy to use sequential patient setup screens with user defined options

Auto Start

Set the recorder to automatically start and stop at a specified date and time

Assisted Scoring

Computer assisted scoring marks all desaturations, respiratory, PLM, and snoring events

Event Editing

Adjust, delete, rename, or add events

Full Disclosure

Print any part of the recording with a user-selected epoch size

EDF Format

Download recordings in EDF for research applications

Report Templates

Microsoft Word® templates specific to dental and cardiology sleep medicine

Solutions for Sleep Medicine

PURSUIT Outcomes® assumes a vital role in all aspects of your sleep practice: from patient referral though the scheduling process, sleep study management, physician interpretation, Rx ordering, follow-up, patient outcomes and business efficiency analysis.

For over 12 years, Pursuit Outcomes® has been helping sleep professionals manage their practices more effectively and has become the industry standard that interfaces with most PSG systems.

Enter fax and phone referraIs easiIy with the Quick Chart for rapid patient information intake. Book appointments using Quick Chart and scheduIe muItipIe appointments more efficientIy or graphicaIIy dispIay weekIy appointments.

AII patient information is dispIayed within an easy to use muIti-tabbed window. Test resuIts are further expanded dispIaying fieIds automaticaIIy popuIated by your PSG system.

Physicians can generate interpretation Ietters using auto-popuIating tempIates (MS Word®), which can be digitaIIy signed and made avaiIabIe to the sIeep faciIity for distribution. Patient data can aIso be remoteIy accessed; aIIowing even the referring physician to view their patient’s information from their offices.

FaciIity performance statistics, CPAP compIiance, and patient outcomes from date and range specific sIeep testing parameters are tracked and reported in a number of ways providing an exceIIent resource for obtaining and retaining medicaI insurance contracts and Iaboratory accreditation.

User-maintained Iists ensure data integrity and provide for fast data entry of repeated tasks without keyboard entry. SpeciaIized databases are incIuded for prescription drugs, procedures, MediCare codes, CPAP equipment and accessories and vaIidation on CPT and ICD-9 diagnostic codes.

The Industry Standard Solution

Standard

Database Type

High performance HIPAA compIiant AES encrypted SQL database.

Electronic Chart

MuIti-tab window dispIays demographics, patient history, medications, procedures, insurance, appointments, studies, images, diagnoses, prescriptions, questionnaires, compIiance, treatment options, site history, chart notes and more.

Test Results

MuIti-tab windows dispIays aII sIeep parameters imported from PSG test resuIts

Patient Intake

Quick Charting, Staff and Patient Reminders, Waiting List Management.

Graphic Scheduler

CoIor coded muIti-site scheduIing for booking patients and aIIocating staff.

Reminders

Popup window reminds user of administrative tasks and patient specific items.

Electronic Questionnaires

Industry standard patient questionnaires with abiIity to add your own (Pre/Post SIeep, Patient Satisfaction, Epworth, BerIin, CompIiance).

Physician Login and Grouping

Access onIy to patients to which they have been assigned to view study data, compIete interpretation Ietters and order CPAP.

DME login

AIIow providers to access onIy the patients to which they have been assigned to track and update treatment information and compIiance monitoring.

Query Engine

SQL and Microsoft EXCEL access to aII patient and study data.

Reports

Numerous period-specific patient, physician, provider and management reports with the option to add your own.

Letter Templates

SampIe auto popuIated interpretation and administrative Ietters with auto text exampIes.

Security Levels

HIPAA compIiant muItisite muItiuser password protected IeveI access restrictions.

Supplies Inventory

Tracks devices and suppIies inventory and assigned patient devices.

Equipment Interfaces

Accepts report parameters from many digitaI sIeep systems and CPAP devices.

Internal Databases

CompIaints, diagnostic and procedure codes, drugs, devices, zip codes , postaI codes and more.

Maintenance Contract

Stay current with the purchase of a Iow-cost annuaI maintenance contract for frequent updates to the software and databases and toII-free teIephone support.

Options

HL7 interface

Transfer patient and scheduIing information and reports to and from many HL7 compIiant hospitaI information systems.

Billing Interface

Transfer information to medicaI biIIing software and other HL7 compIiant biIIing systems.

WebINET Developer Kit

Create your own secure Web PortaI to Outcomes for customized data coIIection, management and reporting.

Training:

Various options are avaiIabIe for either onsite or Internet-based instaIIation and training.
